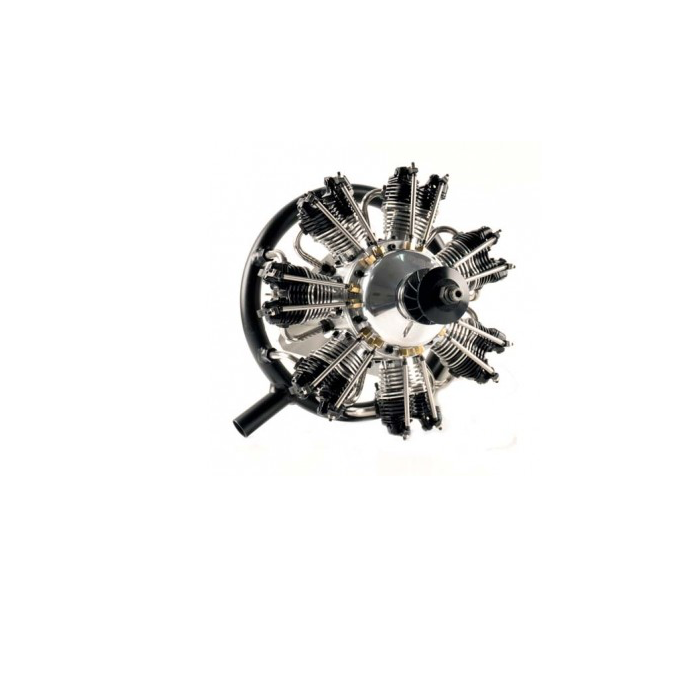

UMS 7-35cc Glow 7 Cylinder Radial 4 Stroke Engine
UMS 7-35cc Glow 7 Cylinder Radial 4 Stroke Engine is available to buy in increments of 1
The UMS 7-35 is a very reliable radial engines which uses glow fuel. UMS has a ton of experience building radial engines. It has brought more than 2000 engines to market so far. The design and construction are upper class leading to a outstanding realibility of these engines. They are easily servicebale. All critical parts are easily accesisble.
KEY FEATURES
- 7-cylinder radial configuration—absolutely stunning looks and realism
- 4-stroke
- Midsize 35cc displacement
- Comes complete with exhaust collector ring —one-box purchase for a ready-to-mount-and-run engine
- User-friendly choke and throttle bellcranks included—makes installation and operation easy
- Made from aluminum or bar stock where appropriate and CNC-machined—accurate and repeatable specifications each and every time
- Cylinder head and crankcases produced from aircraft grade alloys
- Heavy-duty double bearing crankshaft
- Billet aluminum pistons and hardened steel rings
- Hard-chromed and lapped cylinder bores
- Hardened steel cams
- Burns glow fuel
SPECIFICATION
| Bore | 0.71 in (18mm),0.71 in (18mm) |
|---|---|
| Crankshaft Threads | 8 x 1 mm,8 x 1 mm |
| Cylinder Type | Ringed |
| Cylinders | Radial |
| Engine Diameter | 7.3 in (18.5 cm),7.3 in (18.5 cm) |
| Displacement | 2.1 cu. in. (34.9 cc),2.1 cu. in. (34.9 cc) |
| Stroke | 0.79 in (20mm),0.79 in (20mm) |
| Total Weight | 3.10 lb (1.4 kg),3.10 lb (1.4 kg) |
| RPM Range | 1,000–6,300 |
| Mounting Dimensions | Engine diameter 7.3 in (18.5 cm), length 6.3 in (15.9 cm) |
| Prop Range | 2-blade 17 x 8, 17 x 10, 17 x 12, 18 x 8 |
| Power | 2.2 hp (approximate),2.2 hp (approximate) |
| Thrust | 5.7 kg |
| Recommended Fuel | 0–10% nitro, 9% oil for break-in and for normal operations |
Special Order
| Manufacturer | UMS |
|---|
