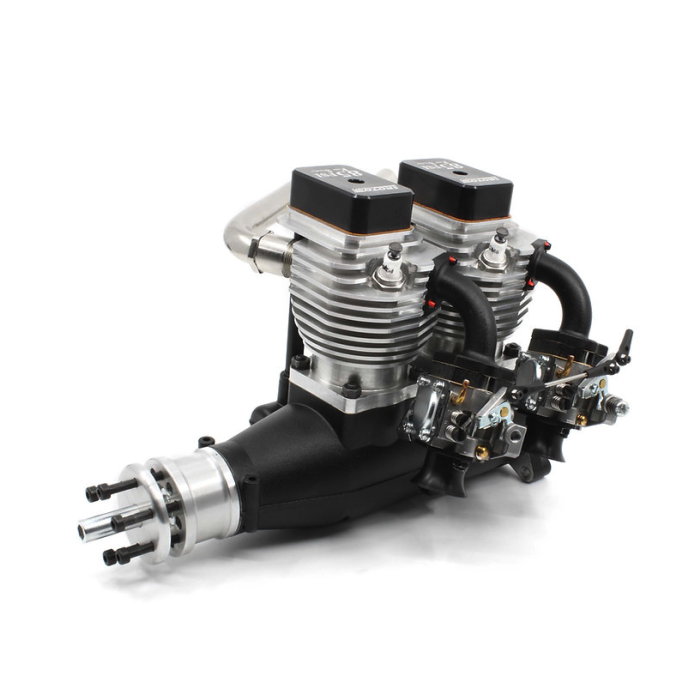

Roto Motor 85cc FSI 270° Gas / Petrol Inline Twin Cylinder 4 Stroke Engine

The 270° crankshaft is used exclusively for Warbirds.

The sound of this engine is enhanced by this specially designed crankshaft design specifically for use in WWII fighter aircraft.

The long awaited increase in engine power, by changing the camshaft timing, is also a big change. Another new feature is the use of two carburettors, which take care of separate cylinder filling.

• Technical data



  Engine displacement	80 ccm
  Power	3,4 kW
  Max static engine thrust	12 kg
  Bore	2x39,5 mm
  Engine weight	2995 g
  Engine & ignition weight	3250 g
  Arrangement of the engine	inline two-cylinder
  Cooling	air-cooled
  Lubrication	petrol 95 oct. + 2% oil
  RPM	1200 – 6000
  Fuel system	Carburettor

  • Recommendations



    Recommended airplanes models
    Up to 3.6 m
    Up to 20 kg

    Recommended propeller
    2 BLADE: 25-26/10-12
    3 BLADE: 24/10-12

    Muffler ROTO TS have reccomendet set an FS 200 & FS 300 connectors combination.

    • Standard packaging



      ROTO 85 FSi	1x
      Ignition	2x
      Exhaust pipes	2x
      Waste oil hose	1x
      Spark plug key CM6	1x
      Cable tie	4x
      Silicone tube	2x

      Muffler ROTO 2 in 1 does not need connectors.

    •
