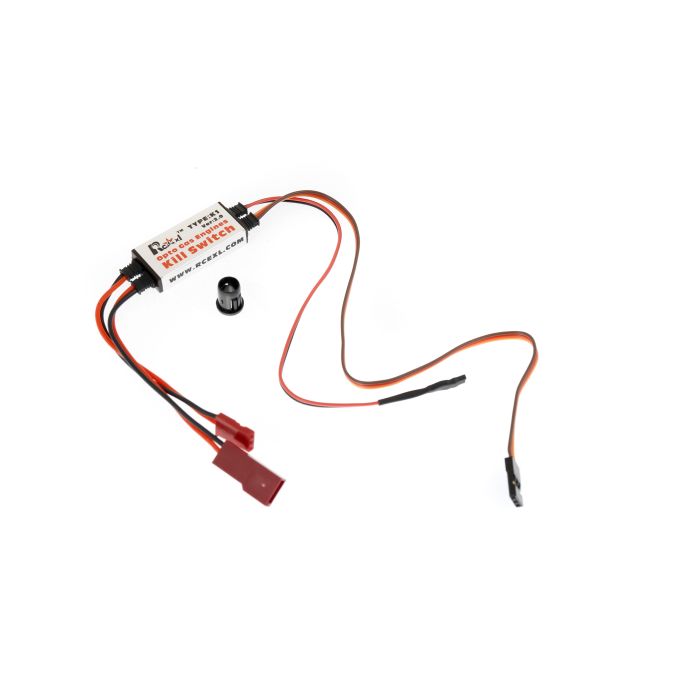

RCEXL Opto Gas Engines Kill Switch (Use Futaba Plug)

What's in the box

1. RCEXL opto gas engines kill swcith (use Futaba Plug)

Specifications

• This device allows you to safely and remotely kill your electronic ignition equipped engine your transmitter.igniton system is Fiber Optically Coupled to isolate your igniton system from your radio  system .(No Interference!!)

This device features the following

• Includes a remote mountable bright LED to indicate when the ignition is armed.
• Fiber Optic conpled input/output.
• Pic12F675 Controller. Li-Po/Li-lon/A123/Ni-Mh/NiCad Input.
• Up to 20 Volt 16 amp MOS-FET(IRF7456) output.
• Low to 3Volt 3amp output. Low Voltage Drop-Less than 150mv.
• 100% Surface Mount Technology.
• Heavy Gauge Wires,universal connectors.
• Small and light weight –only 0.3 OZ!(8g) Reverse Bettery input protection.
• Shut down the transmitter power or receiver to cut off automatically when kill engine.
• This device plugs into a spare receiver channel.
• This is a must have safety device for any gas powered plane!
• This device allows you to safely kill your engine at anytime (on the ground ,or in the air!) Or when out of control also allows kill the enfine.
