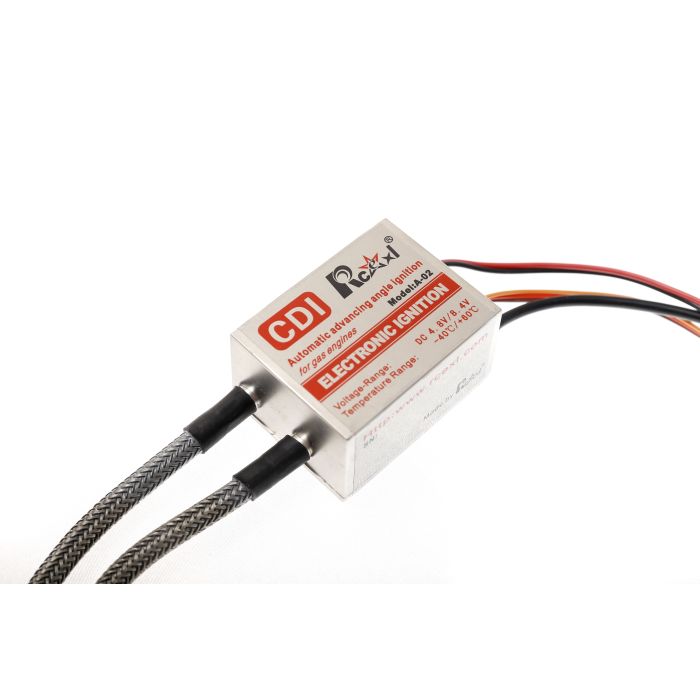

RCEXL LV Uneven Twin Cylinder Ignition 120 Degree 1/4-32" ME-8 5/16" (8mm Hex) Spark Plug Cap
RCEXL LV Uneven Twin Cylinder Ignition 120 Degree 1/4-32" ME-8 5/16" (8mm Hex) Spark Plug Cap is available to buy in increments of 1
Package Including
- 1 RCEXL LV Uneven Twin Ignition 120 Degree 1/4-32" ME-8 5/16" (8mm Hex) Spark Plug Glow Plug Thread Cap (6v to 14.4v)
- 1 Dual Output Sensor Kit
- 1 Contraction Duct
Specifications
- CDI Unit Weight: 178g
- Working Voltage: 6v 6.6v 7.4v up to 14.4v
- Suitable for Spark Plug: 1/4-32" ME-8 5/16" (8mm Hex)
- Plug Type: Futaba Female (for Battery), Futaba Female (for Tachometer)
Recommend Timing We recommend setting the at 30BTDC when the magnet (ENTERS) the sensor antickwise. The ignition unit will automatic retard to 20BTDC up on startup at 100 RPM - 2000 RPM.The ignition unit will fire the plugs twice for easy start.The ignition unit have an automatic curve up to 4000 RPM then after that it is 30BTDC (or your static timing that you set it at) we recommend 30BTDC
Special Order
| Manufacturer | RCEXL |
|---|
