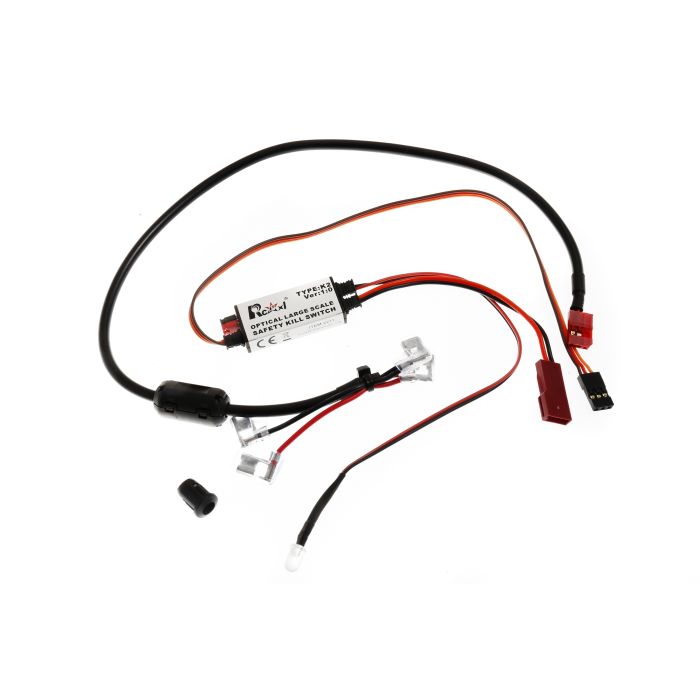

RCEXL Large Scale Kill Switch (Magneto)

What's in the box

1. RCEXL Large Scale Kill Switch (Magneto)

Features:

Works on any gasoline engine land or sea with a magneto drive ignition (not compatible with CDI driven ignition systems）.
Remote LED to indicate if the ignition is live.
Fiber optically coupled to eliminate interference.
Li-Po/Li-Ion/LiFe/Ni-Cd/Ni-MH compatible.
Input range from 3V, 3 amps up to 20V, 16 amps.
Surface mount technology.
High-quality wiring with universal servo connectors.
Only 0.3 oz/8 g.
Manually shut off engine from assigned button on transmitter.
Automatically shuts down power to the ignition on loss of signal or low voltage.

Installation:

1. Connect Safety Kill Switch into AUX1 or an open channel.
2. Install the kill switch in a convenient, secure and protected location. The receiver or receiver battery box is ideal.
3. Mount LED in a visible location.
4. Secure the Safety Kill Switch in position with foam tape in order to prevent vibration damage.
5. Connect the Safety Kill Switch cable to the ignition coil terminals. Polarity doesn’t matter.
6. Zip tie ignition cable away from the flywheel and any moving parts.
