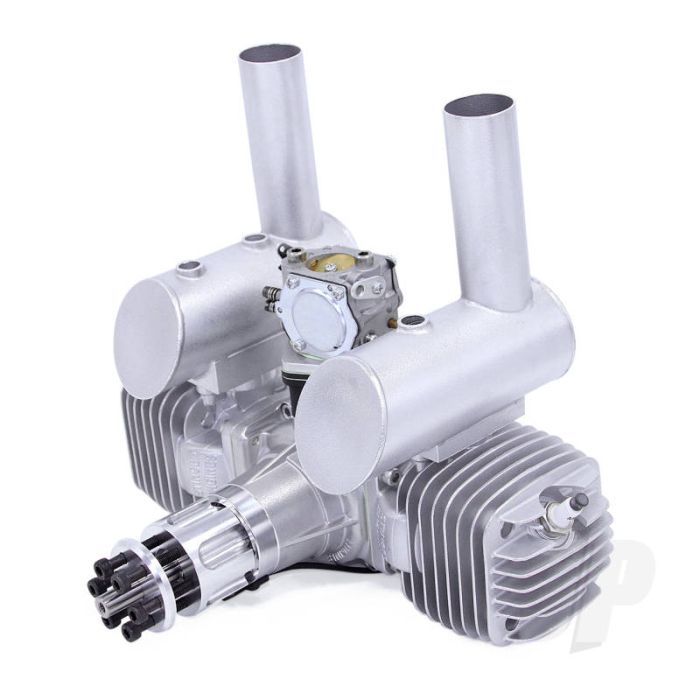

125cc Twin Cylinder 2-Stroke Petrol Engine

FEATURES

• Walbro carburettor.
• Outstandingly powerful 125cc (7.63cu. in.) displacement.
• 1500 to 8900rpm range.
• 27x10 to 28x10" propeller range.
• Uses 30:1 (recommended) pre-mixed fuel.
• Auto advance electronic ignition system.
• Easy starting.
• Twin mufflers.
• Includes CDI unit, mufflers and spark plugs.
• 2665g

CONTENTS

• 1x Stinger 125cc twin.
• 1x Electronic CDI unit.
• 2x Spark plugs.
• 2x Mufflers.
• 2x Muffler extension pipes.
• 1x Gasket and bolt set.
• 1x Throttle arm extension.
• 1x Comprehensive instruction manual.

NEEDED TO COMPLETE

• 1x 27x8, 27x10, 27x11, 28x8 or 28x10" propeller.
• 1x Ignition battery (6 – 8.4V NiMH, 6.6V LiFe or 7.4V LiPo).

DETAILS

One of the strongest and most powerful engines in its class, RCGFs compact 125cc Stinger twin has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that's manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.

Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.

Specification:

Displacement (cc):	125
Bore (mm):	47
Maximum output (hp):	12
Weight (g):	2665
Fuel:	Petrol
Petrol / Oil mix:	30:1
Idle Speed (rpm):	1600
Spark plug:	CM6
