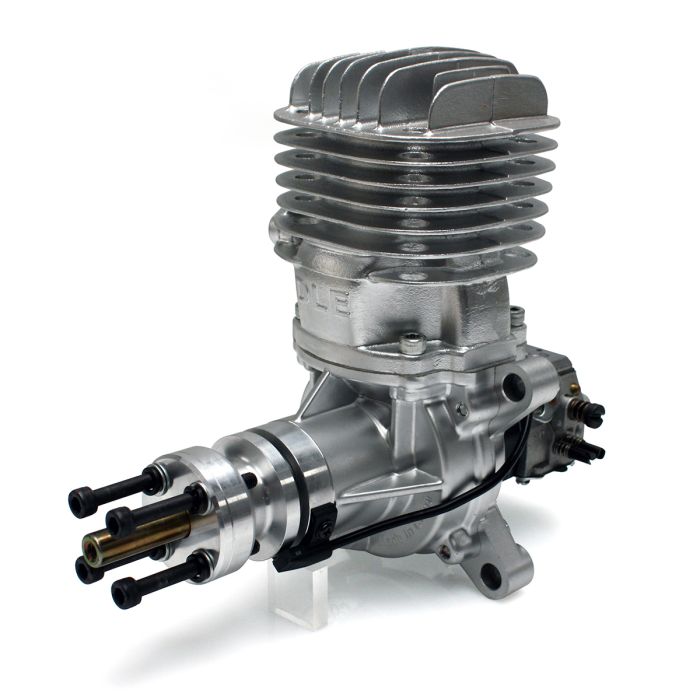

DLE-65 TWO STROKE PETROL ENGINE

DLE65cc gasoline model engine, launched in March 2020, is a single cylinder two-stroke piston engine. Clean 92 ? or above unleaded gasoline is used as fuel, and the proportion of engine oil is 30:1. It is forbidden to mix lubricants of different manufacturers and brands! It will cause serious blockage of carburetor.

Specifications:

• Performance: 6.5HP/7500rpm
• Idle Speed: 1400 rmp/min
• Static Thrust: 16kg/100 meters Altitude
• Static Thrust: 13.7kg/1800 meters Altitude
• Recommended Propeller: 23x10 / 24x8 / 24x9 / 24x10
• Spark Plug Type: DLE CM6*
• Displacement: 65cm3
• Diameter × Stroke: 47mm x 37.5mm
• Compression Ratio: 9.2:1
• Lubrication Ratio: 30:1
• Weight of Main Engine: 1450g
• Weight of Exhaust: 170g
• Weight of Ignition: 130g
• Ignition voltage: 4.8V-12V

*IMPORTANT NOTICE: MacGregor Industries Ltd highly recommend using NGK-CM6 spark plugs with this engine for optimum performance.
