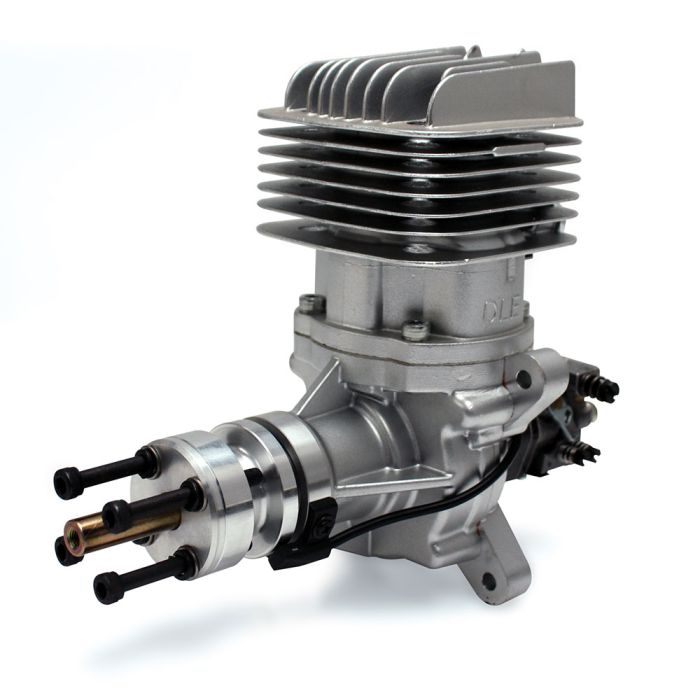

DLE-55RA TWO STROKE PETROL ENGINE

CAD$723.87 CAD$689.40
SKU #:
DLE55RA
In Stock
DLE-55RA TWO STROKE PETROL ENGINE is available to buy in increments of 1

Product Features

  • Advanced CNC machining, tight tolerances and refined porting improve compression and fuel burning efficiency to raise performance and reduce exhaust residue.
  • Redesigned, lightened piston skirt provides better throttle response, fuel economy and resistance to wear.
  • Included 2-stage Pitts muffler reduces back pressure and increases power.
  • Also features a special aluminum alloy crankcase, high-quality sealed crankshaft bearings and DLE-customized carburetor.

More power!

Producing 100 rpm more than the DLE-55, the DLE-55RA screams performance - from the lightweight piston skirt that speeds throttle response to the rear exhaust design that permits easy tuned pipe installation. Ideal for warbirds and aerobatic aircraft, it comes with engine standoffs, electronic ignition, spark plug and Pitts style muffler.

IMPORTANT NOTICE: MacGregor Industries Ltd highly recommend using NGK-CM6 spark plugs with this engine for optimum performance.

Specifications:

Displacement: 55.6 cc (3.4 cu in)
Bore: 1.77 in (45 mm)
Stroke: 1.38 in (35 mm)
Weight: 3.74 (1.7 kg)
RPM Range: 1,500-8,500
Output: 5.5 hp @ 8,500 rpm
Requires: Unleaded Petrol (Gasoline), oil, ignition battery & propeller
Includes: Electronic ignition, muffler, spark plug, engine standoffs, integrated choke rod guide & rear-mounted carb

Technical Data:

Ignition Battery: 4.8V-12V (Voltage regulator required if LiFe or LiPo pack is used)
Compression Ratio: 7.6:1
Petrol/Oil Mix: 30:1
Weight Breakdown: Engine: 46.74 oz (1325 g); Muffler: 3.17 oz (90 g); Ignition: 5.11 oz (145 g)
In Stock
More Information
Manufacturer DLE Engines
