DLE 130cc With Starter, 350w Generator & Fuel Injected

CAD$14,781.69 CAD$14,077.80
Manufacturer:
SKU #:
DLE130S350WFI
Special Order [!]Dispatch as soon as item comes available.
Manufacturer:

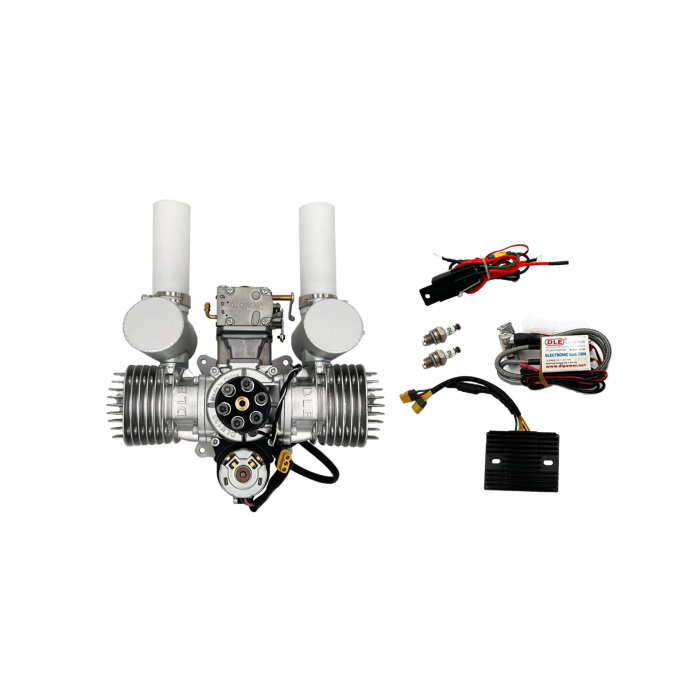

DLE130 Integrated Starter and Generator version

The DLE130 engine is a high-performance engine designed specifically for various unmanned aerial vehicles. It adopts planetary gear electric starting technology,It can be quickly started to improve flight efficiency. At the same time, the engine also has a power generation function, which can output 14V 350W of electricity, providing stable energy support for the aircraft.

1659697782-xxcl1
1659706601-chilun-1

Planetary gear starter assembly

It has small size with high torque, high durability, more reliable choice for paramotor, UAV and other projects.

The output gear will only extend and drive the engine while starting the engine. After the engine is started and the starter stopped,

the output gear will disengage and retract to back.

weight



Engine+Muffler                4200g

Lgniter+Spark plug          200g

Relay                               160g

Rectifier                           415g



Parameter




performance                       13HP/8500rpm

Diameter × Stroke               47mm 37.5mm

Recommended Propeller    27×12 28×10 28×11 29×9

Compression Ratio              9.2 :1

Lubrication Ratio                 30 :1

Displacement                      130cm³

Spark Plug Type                  DLE CM6

Starting motor power           12V 400W

Generator voltage                14.5V

Generator power                  350W/6000rpm

Rpm          Voltage          Power

6000              14.5                350W

5000              14.5                330W

4000              14.5                300W

3000              14.5                150W

Strengths and Features




The DLE130 engine possesses the following advantages and features:

    • Planetary gear electric starting technology, faster starting speed, longer service life;
    • Power generation function, capable of outputting 14V 350W power, providing stable energy support for aircraft;
    • High performance and stable performance, suitable for various extreme environments;
    • Lightweight, compact, easy to install and use。

Installation and usage recommendations




When installing and using the DLE130 engine, the following suggestions should be noted:

    • Before installation, check whether the engine and related components are intact and undamaged to ensure that there are no problems during the installation process。
    • Before use, it is necessary to thoroughly preheat the engine to ensure that it can start and run normally。
    • During use, it is necessary to regularly check the condition of the engine and related components. If there is any damage or malfunction, it is necessary to repair or replace it in a timely manner。
    • During storage and maintenance, it is necessary to clean the engine and related components and store them in a dry and well ventilated place to ensure their long-term service life。
