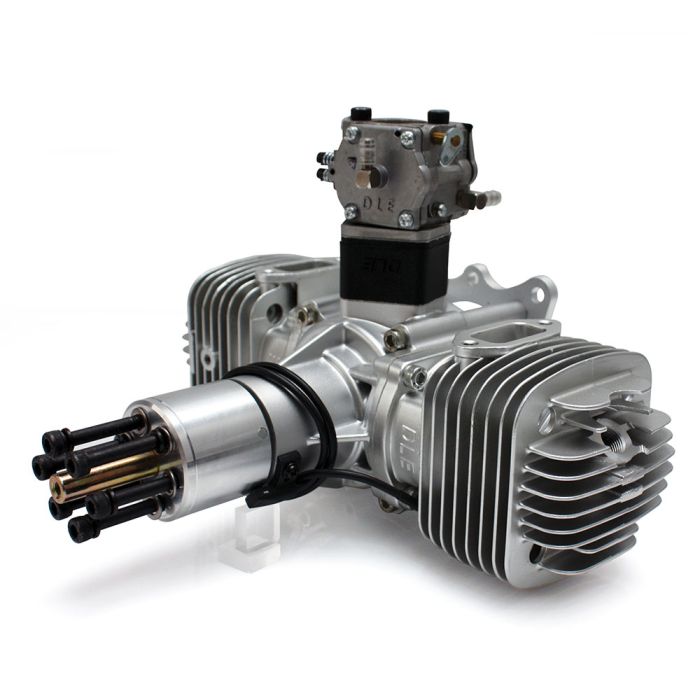

DLE 120cc Twin Engine
DLE 120cc Twin Engine is available to buy in increments of 1
Product Features
- Efficient, light design for a high power-to-weight ratio
- Light pistons for fast acceleration, excellent compression and low vibration
- CNC-machined parts for high performance and long life
- Sealed crankshaft bearings
- Improved piston and cylinder contact area for increased engine lifespan.
- Matched mufflers included for optimized power
- Electronic ignition module with spark plugs
- Standoffs and mount
- Spiral wire wrap
Twin-cylinder Power and Efficiency
The DLE-120 delivers 50 pounds of static thrust-more than enough power for intense 3D manoeuvers. Twin opposed cylinders reduce vibration and engine wear and increase performance.
Mufflers, standoffs and electronic ignition boost performance even further. The DLE-120 delivers the most punch at the lowest weight and the lowest price of any engine in its class. Pick up the DLE-120 and fly with performance-fueled confidence.
IMPORTANT NOTICE: MacGregor Industries Ltd highly recommend using NGK-CM6 spark plugs with this engine for optimum performance.
Specifications:
| Displacement: | 120.0 cc (7.3 cu in) |
| Bore: | 1.85 in (47 mm) |
| Stroke: | 1.38 in (35 mm) |
| Weight: | 6.38 lb (2.895 kg) |
| Output: | 12 hp @ 7,500 rpm |
| Requires: | Unleaded Petrol (Gasoline), oil, ignition battery & propeller |
| Includes: | Electronic ignition module, mufflers, spark plugs, mount, standoffs, spiral wire wrap & connector safety clips |
| Recommended Prop: | 26x10, 26x12, 27x10, 28x10 |
Technical Data:
| Ignition Battery: | 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack (Voltage regulator required if LiFe or LiPo pack is used.) |
| Petrol/Oil Mix: | 30:1 |
| Compression Ratio: | 10.5:1 |
| Static thrust: | 20.9 lb (9.5 kg) @ 328 feet altitude, 18.7 lb (8.5 kg) @ 1,800 feet altitude |
| Weight Breakdown: | Engine: 5.34 lb (2.42 kg); Muffler 1: 3.6 oz (103 g); Muffler 2: 3.9 oz (111 g); Ignition Module: 5.3 oz (149 g); Miscellaneous: 4 oz (112 g) |
In Stock
| Manufacturer | DLE Engines |
|---|
